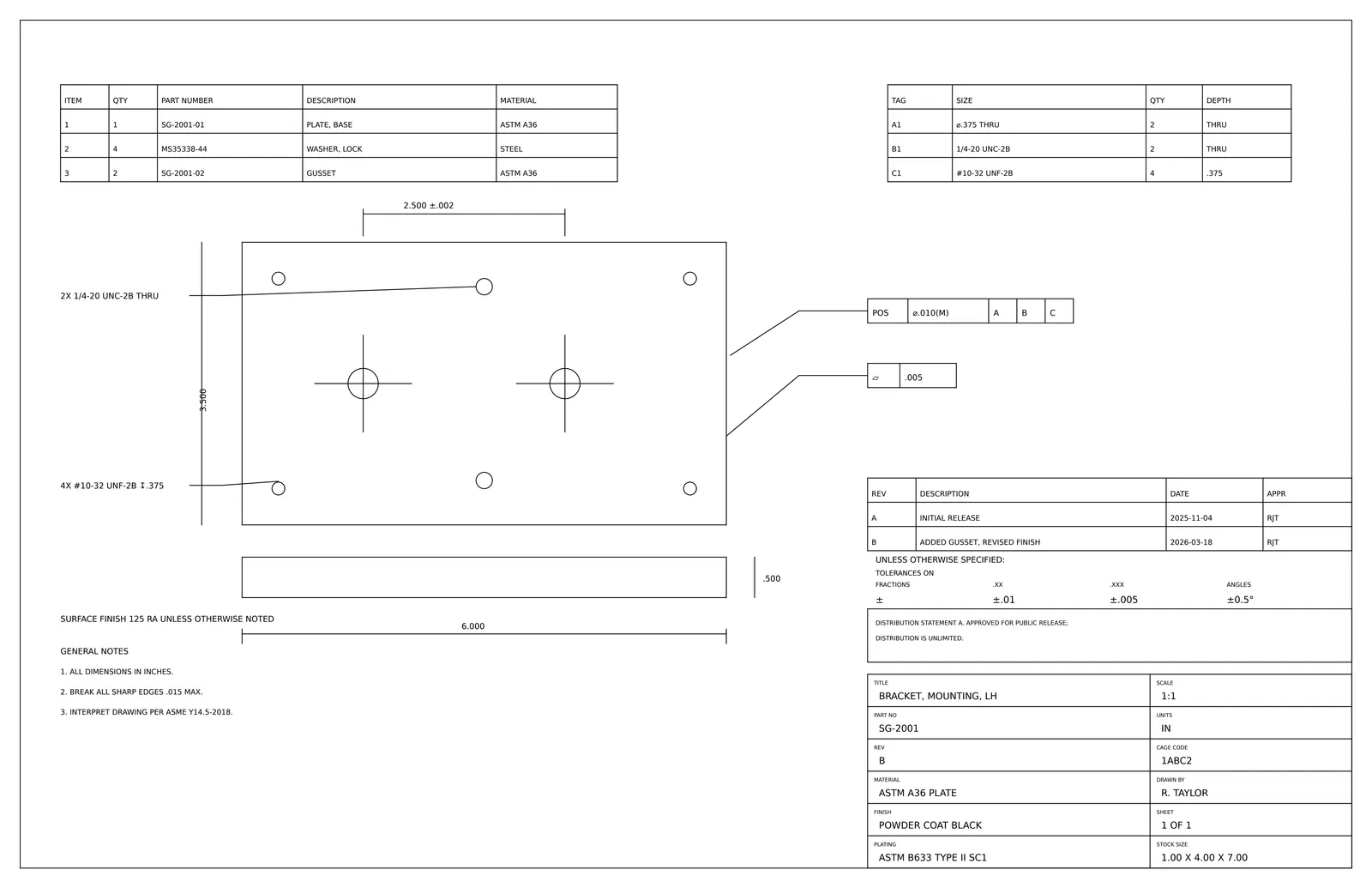

71 values read50 boxed on the drawing9 waiting for a personRead October 14, 2026 Scroll to zoom, drag to move, double-click to look closer, or select a value. Pinch to zoom, drag to move, double-tap to look closer, or tap a value. Keys: plus and minus zoom, the arrows move, 0 shows the whole sheet. Open the full-resolution drawing Every title-block box filled in, with a parts list, a hole table, a revision block, a tolerance block, notes and a distribution statement approved for public release. A synthetic sample drawing, made up by our own generator - no real part, company or customer - and every value here is what SpecCapture's engine actually read from it.
Title block Part Number SG-2001 High confidence. Read from “PART NO SG-2001” Revision B High confidence. Read from “REV B” Title BRACKET, MOUNTING, LH High confidence. Read from “TITLE BRACKET, MOUNTING, LH” Material Specification ASTM A36 High confidence. Read from “MATERIAL ASTM A36 PLATE” Material Form PLATE High confidence. Read from “MATERIAL ASTM A36 PLATE” Stock Size 1.00 X 4.00 X 7.00 High confidence. Read from “STOCK SIZE 1.00 X 4.00 X 7.00” Finish / Coating POWDER COAT BLACK High confidence. Read from “FINISH POWDER COAT BLACK” Plating Specification ASTM B633 TYPE II SC1 Medium confidence. Read from “PLATING ASTM B633 TYPE II SC1” Surface Finish (roughness) 125 RA High confidence. Read from “SURFACE FINISH 125 RA UNLESS OTHERWISE NOTED” Scale 1:1 High confidence. Read from “SCALE 1:1” Units IN High confidence. Read from “UNITS IN” Sheet Number 1 High confidence. Read from “SHEET 1 OF 1” Sheet Count 1 High confidence. Read from “SHEET 1 OF 1” Drawn By R. TAYLOR High confidence. Read from “DRAWN BY R. TAYLOR” Default Two-Place Decimal Tolerance ±.01 High confidence. Read from “.XX ±.01” Default Three-Place Decimal Tolerance ±.005 High confidence. Read from “.XXX ±.005” Default Angle Tolerance ±0.5° High confidence. Read from “ANGLES ±0.5°” Drawing Standard ASME Y14.5-2018 High confidence. Read from “3. INTERPRET DRAWING PER ASME Y14.5-2018.” CAGE Code 1ABC2 High confidence. Read from “CAGE CODE 1ABC2” Export Control Marking DISTRIBUTION STATEMENT A. APPROVED FOR PUBLIC RELEASE;
DISTRIBUTION IS UNLIMITED High confidence. Read from “DISTRIBUTION STATEMENT A. APPROVED FOR PUBLIC RELEASE; DISTRIBUTION IS UNLIMITED.” Assist Sizes and counts worked out from the drawing. Check these before you rely on them.
Envelope LengthReview 6.000 High confidence, waiting for a person to check. Envelope WidthReview 3.500 High confidence, waiting for a person to check. Envelope HeightReview .500 High confidence, waiting for a person to check. Envelope FormReview PLATE High confidence, waiting for a person to check. Read from “ASTM A36 PLATE” Envelope UnitsReview IN High confidence, waiting for a person to check. Read from “ALL DIMENSIONS IN INCHES.” Tightest Tolerance on PrintReview .002 High confidence, waiting for a person to check. GD&T Callout CountReview 2 High confidence, waiting for a person to check. Hole CountReview 8 High confidence, waiting for a person to check. Thread Callout CountReview 2 High confidence, waiting for a person to check. Revision History Rev A A High confidence. Description · Rev A INITIAL RELEASE High confidence. Date · Rev A 2025-11-04 High confidence. Approved By · Rev A RJT High confidence. Rev B B High confidence. Description · Rev B ADDED GUSSET, REVISED FINISH High confidence. Date · Rev B 2026-03-18 High confidence. Approved By · Rev B RJT High confidence. Bill of Materials Item 1 1 High confidence. Quantity · Item 1 1 High confidence. Part Number · Item 1 SG-2001-01 High confidence. Description · Item 1 PLATE, BASE High confidence. Material · Item 1 ASTM A36 High confidence. Item 2 2 High confidence. Quantity · Item 2 4 High confidence. Part Number · Item 2 MS35338-44 High confidence. Description · Item 2 WASHER, LOCK High confidence. Material · Item 2 STEEL High confidence. Item 3 3 High confidence. Quantity · Item 3 2 High confidence. Part Number · Item 3 SG-2001-02 High confidence. Description · Item 3 GUSSET High confidence. Material · Item 3 ASTM A36 High confidence. Hole Table Tag A1 A1 High confidence. Size · Tag A1 0.375 THRU Medium confidence. Quantity · Tag A1 2 High confidence. Depth · Tag A1 THRU High confidence. Tag B1 B1 High confidence. Size · Tag B1 1/4-20 UNC-2B High confidence. Quantity · Tag B1 2 High confidence. Depth · Tag B1 THRU High confidence. Tag C1 C1 High confidence. Size · Tag C1 #10-32 UNF-2B High confidence. Quantity · Tag C1 4 High confidence. Depth · Tag C1 .375 High confidence. Dash Numbers (tabulated variants) Dash Number -01 -01 High confidence. How it was found: A variant of this drawing: the Bill of Materials lists the Part Number 'SG-2001-01', this drawing's own number with a dash. Description · Dash Number -01 PLATE, BASE High confidence. How it was found: From the Bill of Materials row that lists -01. Dash Number -02 -02 High confidence. How it was found: A variant of this drawing: the Bill of Materials lists the Part Number 'SG-2001-02', this drawing's own number with a dash. Description · Dash Number -02 GUSSET High confidence. How it was found: From the Bill of Materials row that lists -02. General notes Note 1 1. ALL DIMENSIONS IN INCHES. Note 2 2. BREAK ALL SHARP EDGES .015 MAX. Note 3 3. INTERPRET DRAWING PER ASME Y14.5-2018. Where this reading came from The drawing is full-title-block-text from the project's synthetic set (samples/drawing-v1), generated by its own drawing generator. The values are the engine's saved result from evaluation run samples-gallery/20261014-183938 (run 1), engine version ev1-8f5b6326823dca97, read October 14, 2026, shown exactly as the app's review screen shows them: confidence as a band, never a number, and sizes and counts (Assist) always waiting for a person.
Drawing file (SHA-256) b399b6b3564985edb0e7092d0bcc5fd8fb68ac7f6b706d296d7820dd4e38185cDownload bracket.pdf (PDF): this very file, to send through the API yourself, as the quickstart does.Engine result (SHA-256) 52f8bc5164f806e6c73b0a4e31542c5a4040eaf3e27b56ea83168f76e7691a44Template drawing v1
