Samples
Sample drawings, read by SpecCapture
These are synthetic sample drawings: one made-up bracket, drawn six different ways by SpecCapture's own drawing generator, with no real part, company or customer. Open one to see every value the engine read from it, boxed on the drawing, with its confidence and whether it waits for a person to check it. Nothing here is a mock-up: it is the engine's own output.

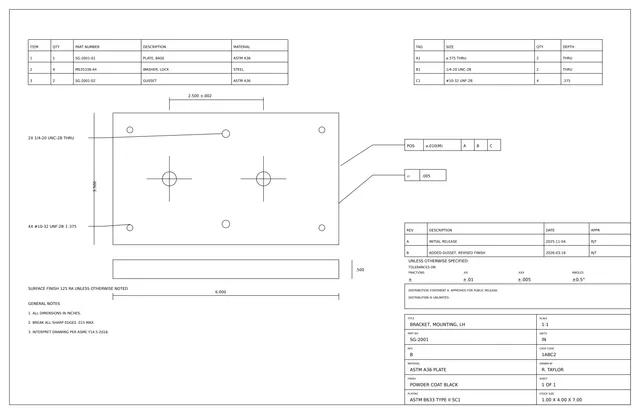

A full title blockEvery title-block box filled in, with a parts list, a hole table, a revision block, a tolerance block, notes and a distribution statement approved for public release.
71 values read · 9 waiting for a person
Chain dimensionsThe overall length is never printed: it is the sum of a chain of dimensions.
66 values read · 9 waiting for a person
Ordinate dimensionsDimensions run from one datum, so the overall length is the largest of them.
66 values read · 9 waiting for a person

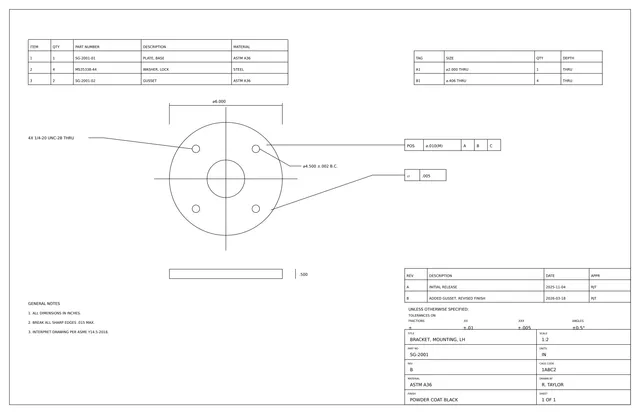

A round partA disc, where one diameter is both the length and the width.
62 values read · 9 waiting for a person

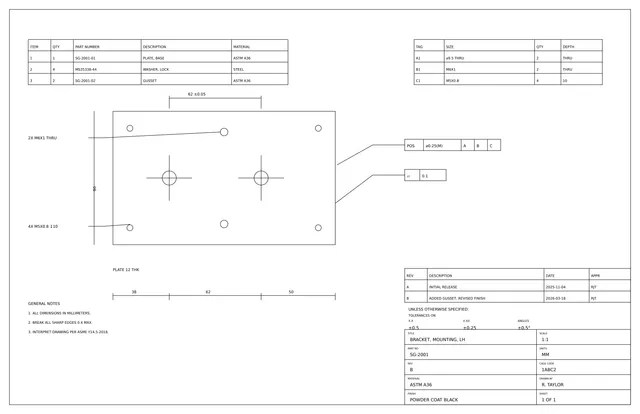

A metric drawingMillimeters, chain dimensioning, and the thickness stated only in a note.
65 values read · 8 waiting for a person

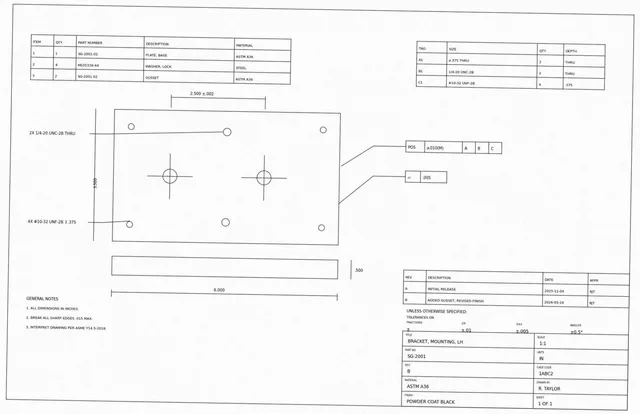

A scanned copyThe sheet as a scan: lower resolution, blur and speckle, added by the generator.
65 values read · 9 waiting for a person
How to read them
A solid box is a value SpecCapture read and checked; a dashed box waits for a person. Confidence is shown as high, medium or low, never as a number. Sizes and counts worked out from the drawing (Assist) always wait for a person, whatever their confidence. Each page also says which run and engine version the values came from.
The sample drawing is a full title block, at a short address to share. Your own drawings are read the same way: SpecCapture at a glance has what it reads, its measured accuracy and its weak spots.
